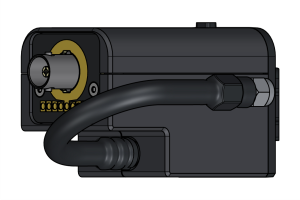

The MX0113A adapter allows you to connect a Keysight probe that has the AutoProbe I interface (Precision BNC interface) to a Keysight oscilloscope that has the AutoProbe III interface (1.0 mm, 1.85 mm or 2.92 mm connector interface).

The usage of this adapter expands the probing choices available with the ultra-high performance AutoProbe III interface oscilloscopes by enabling you to use a wide variety of AutoProbe I Keysight probes with these oscilloscopes.

Care should be taken while handling the MX0113A adapter’s RF cable. Avoid bending this cable backwards or kinking the cable to ensure measurements accuracy.

Links to PDF Documents

Compatibility with Oscilloscopes, Probes and Adapters

Compatible Oscilloscopes

Oscilloscope Series (with AutoProbe III interface)

Compatible

Oscilloscope Software
UXR-Series with 1.0 mm connectors ♦ Infiniium 11.71 or higher

UXR-Series with 1.85 mm connectors

 ♦
 Infiniium 11.71 or higher

XR8-Series with 2.92 mm connectors

 ♦ Infiniium 2026 or higher

Compatible Adapters

The 2.92 mm connector is compatible with 3.5 mm / SMA connector, whereas the 2.4 mm connector is compatible with 1.85 mm connector.

Adapter Part Number

 Description

Oscilloscope Series (with AutoProbe III interface)

Compatible
5067-1293 1.0 mm ruggedized (f) to 2.92 mm (f) UXR-Series with 1.0 mm connectors ♦
1250-3782 2.4 mm (f) to 2.92 mm (f)

UXR-Series with 1.85 mm connectors

 ♦
1250-4105 2.92 mm (f) to 2.92 mm (f)

XR8-Series with 2.92 mm connectors

 ♦

Compatible Probes (with AutoProbe I Interface)

Probes (50 Ω impedance)

Compatible

1168B InfiniiMax II Series Probe Amplifier, 10 GHz

1169B InfiniiMax II Series Probe Amplifier, 12 GHz

 ♦

1130B InfiniiMax Probe, 1.5 GHz

1131B InfiniiMax Probe, 3.5 GHz

1132B InfiniiMax Probe, 5 GHz

1134B InfiniiMax Probe, 7 GHz

 ♦

DP0010A Differential Active Probe, 250 MHz

DP0011A Differential Active Probe, 500 MHz

DP0012A Differential Active Probe, 1 GHz

DP0013A Differential Active Probe, 1.7 GHz

 ♦
N2750A/51A/52A InfiniiMode Differential Active Probes ♦

N2830A InfiniiMax III+ Series Probe Amplifier, 4 GHz

N2831A InfiniiMax III+ Series Probe Amplifier, 8 GHz

N2832A InfiniiMax III+ Series Probe Amplifier, 13 GHz

 ♦
N2796A Active Probe, 2 GHz ♦
N7024A Power Rail Probe, 6 GHz ♦
DP0001A 400 MHz High Voltage Differential Probe ♦

Probes (1M Ω impedance)

Compatible

DP0030A High-Voltage Differential Probe, 100 MHz, 750 V

DP0031A High-Voltage Differential Probe, 200 MHz, 750 V

DP0032A High-Voltage Differential Probe, 200 MHz, 1,500 V

DP0033A High-Voltage Differential Probe, 200 MHz, 3,000 V

 ♦

PP0001A/2A/3a Hi-Z+ Probes

 ♦
